Kwik-Switch Acura-Series Collet Chuck

Note! These chucks are compatible with:
14pt Dot Acura-Flex extended range collets - using Acura-Flex Nut
Acura-Grip maximum accuracy collets - using Acura-Grip Nut
Acura-Mill positive drive maximum accuracy collets - using Acura-Grip Nut

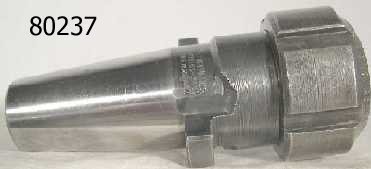

Kwik-Switch 200 Acura-Flex Collet Chuck 80237

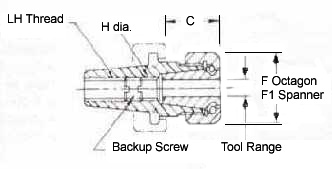

Universal Engineering (TSD) part numbers, dimensions and specifications
Kwik Switch	Tool Range	Universal Part No.	C	F	F1	H	L.H. Thread	Wrench Part No	AF Nut Part No.	AG Nut Part No	Price and Availability
100	1/16 to 3/8	80136	0.75	1.00	~	0.39	7/16-20	55068	9400002	90376	~
100	7/64 to 1/2	80137	0.84	1.25	~	0.39	7/16-20	55105	9400020 9400230*	90501	Click
200	1/16 to 3/8	80235	1.12	1.00	~	0.39	7/16-20	55068	9400002	90376	Click
200	7/64 to 1/2	80236	1.12	1.25	~	0.52	9/16-18	55105	9400020 9400230*	90501	Click
200	7/64 to 3/4	80237	1.81	~	1.94	0.77	13/16-16	55139	9400005	90751	Click
300	1/16 to 3/8	80348	1.03	1.00	~	.39	7/16-20	55068	9400002	90376	Click
300	7/64 to 1/2	80349	1.03	1.25	~	.52	9/16-18	55105	9400020 9400230*	90501	Click
300	7/64 to 3/4	80350	1.41	~	1.94	.77	13/16-16	55139	9400005	90751	Click
300	7/32 to 1	80351	2.03	~	2.50	.77	13/16-16	55171	9400021	901001	Click
400	7/64 to 1/2	80415	1.38	1.25	~	.52	9/16-18	55105	9400020 9400230*	90501	Click
400	7/64 to 3/4	80416	1.78	~	1.94	.77	13/16-16	55139	9400005	90751	Click
400	7/32 to 1	80417	1.88	~	2.50	1.06	1 1/8-16	55171	9400021	901001	Click
400	11/32 to 1-3/8	804290	2.00	~	3.00	1.44	1 1/2-16	85296	9400011	901376	Click
400	19/32 to 1-5/8	80450	3.28	~	3.38	1.44	1 1/2-16	55200	9400014	901626	Click

* The only visible difference is the 9400020 is black and the 9400230 is grey.

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
