Universal Acura-Flex Collets

Features:
14pt DotExtended Clamping Range, .02"
75 pixel space (except AF-000 = 0.012", AF-00 & AF-0 = 0.015", 1-3/8" & 1-5/8" capacity collets = 0.04")
14pt Dot50% more gripping power than any other single-taper collet available.
14pt DotCollets are guaranteed to .0005 T.I.R. at 2 times the tool diameter, or a maximum one-inch from the face of the collet.
75 pixel spaceSizes .062 thru .172 are guaranteed .0010 at the nose.
14pt DotUniversal Acura-Flex collets are interchangeable with Centaur Precision Tools RDF collets.
14pt DotAcura-Flex collets are NOT interchangeable with TG or ER collets.

Size Overview:
Universal Engineering Acura-Flex Collet drawing Universal Engineering Acura-Flex Collet picture 1
Universal Engineering (TSD) part numbers, dimensions and specifications

Capacity

Tool Size Range

Universal Part No.

Clamp Range

Gage Dia. D

Z

L

Price and
Availability

1/4"

1/16" to 1/4"

AF-000 to AF-14

0.02*

.438

.25

1.00

Click

3/8"

1/16 to 3/8

AF-21 to AF-44

0.02

.563

.25

1.03

Click

1/2"

7/64 to 1/2

AF-55 to AF-82

0.02

.720

.25

1.16

Click

3/4"

7/64 to 3/4

AF-95 to AF-140

0.02

1.131

.62

2.02

Click

1"

7/32 to 1"

AF-162 to AF-213

0.02

1.446

.75

2.50

Click

1-3/8"

11/32 to 1-3/8

AF-241 to AF-286

0.04

1.909

.91

3.10

Click

1-5/8"

19/32 to 1-5/8

AF-331 to AF-377

0.04

2.163

.91

3.13

Click
* AF-000 = 0.012", AF-00 & AF-0 = 0.015"
Compatible Kwik-Switch Acura-Flex collet chucks

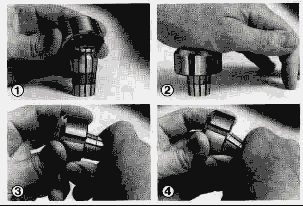

Mounting Information:
Acura-Flex collets must be assembled to the Acura-Flex nut before inserting collet into chuck. To assemble collet to nut, stand collet on end, on any firm surface, nose up. Place nut over collet, Push down on nut with palm of hand and the collets nose will collapse slightly allowing it to enter the nut.

To remove collet from nut, hold the nut firmly in one hand and grasp the collet with the other. Apply a bending pressure until nut separates from collet. On smaller size collets (1/4, 3/8 and 1/2), where the collet nose projects beyond the nut, nuts may be removed by setting collet/nut assembly nose down on a firm surface and pressing down on nut until collet disengages.

Acura-Flex Collet Mounting Information Picture 2


Detailed List
1/4" cap. Vertical Line 3/8" cap. Vertical Line 1/2" cap. Vertical Line 3/4" cap. Vertical Line 1" cap. Vertical Line 1-3/8" cap. Vertical Line 1-5/8" cap.

1/4" Capacity Acura-Flex Collet 75 pixel space Price and Availability
Universal Engineering (TSD) part numbers, dimensions and specifications

Chuck Tool Size Range

Max. Tool Size (in.)

Max. Tool Size (mm)

Universal Part No.

Clamp Range

Gage Dia. D

Z

L

1/16 to 1/4

1/32

0.8

AF-000

0.012

.438

.25

1.00

1/16 to 1/4

3/64

1.2

AF-00

0.015

.438

.25

1.00

1/16 to 1/4

1/16

1.5

AF-0

0.015

.438

.25

1.00

1/16 to 1/4

5/64

2

AF-1

.02

.438

.25

1.00

1/16 to 1/4

3/32

2.5

AF-2

.02

.438

.25

1.00

1/16 to 1/4

7/64

~

AF-3

.02

.438

.25

1.00

1/16 to 1/4

~

3

AF-4

.02

.438

.25

1.00

1/16 to 1/4

1/8

~

AF-5

.02

.438

.25

1.00

1/16 to 1/4

9/64

3.5

AF-6

.02

.438

.25

1.00

1/16 to 1/4

5/32

4

AF-7

.02

.438

.25

1.00

1/16 to 1/4

11/64

4.5

AF-8

.02

.438

.25

1.00

1/16 to 1/4

3/16

~

AF-9

.02

.438

.25

1.00

1/16 to 1/4

~

5

AF-l0

.02

.438

.25

1.00

1/16 to 1/4

13/64

~

AF-11

.02

.438

.25

1.00

1/16 to 1/4

7/32

5.5

AF-12

.02

.438

.25

1.00

1/16 to 1/4

15/64

6

AF-13

.02

.438

.25

1.00

1/16 to 1/4

1/4

6.5

AF-14

.02

.438

.25

1.00
Universal Engineering Acura-Flex Collet drawing
Universal Engineering Acura-Flex Collet Picure 3
[Back]

3/8" Capacity Acura-Flex Collets 75 pixel space Price and Availability
Universal Engineering (TSD) part numbers, dimensions and specifications

Chuck Tool Size Range

Max. Tool Size (in.)

Max. Tool Size (mm)

Universal Part No.

Clamp Range

Gage Dia. D

Z

L

1/16 to 3/8

5/64

2

AF-21

.02

.563

.25

1.03

1/16 to 3/8

3/32

2.5

AF-22

.02

.563

.25

1.03

1/16 to 3/8

7/64

~

AF-23

.02

.563

.25

1.03

1/16 to 3/8

~

3

AF-24

.02

.563

.25

1.03

1/16 to 3/8

1/8

~

AF-25

.02

.563

.25

1.03

1/16 to 3/8

9/64

3.5

AF-26

.02

.563

.25

1.03

1/16 to 3/8

5/32

4

AF-27

.02

.563

.25

1.03

1/16 to 3/8

11/64

4.5

AF-28

.02

.563

.25

1.03

1/16 to 3/8

3/16

~

AF-29

.02

.563

.25

1.03

1/16 to 3/8

~

5

AF-30

.02

.563

.25

1.03

1/16 to 3/8

13/64

~

AF-31

.02

.563

.25

1.03

1/16 to 3/8

7/32

5.5

AF-32

.02

.563

.25

1.03

1/16 to 3/8

15/64

6

AF-33

.02

.563

.25

1.03

1/16 to 3/8

1/4

6.5

AF-34

.02

.563

.25

1.03

1/16 to 3/8

17/64

~

AF-35

.02

.563

.25

1.03

1/16 to 3/8

~

7

AF-36

.02

.563

.25

1.03

1/16 to 3/8

9/32

~

AF-37

.02

.563

.25

1.03

1/16 to 3/8

19/64

7.5

AF-38

.02

.563

.25

1.03

1/16 to 3/8

5/16

8

AF-39

.02

.563

.25

1.03

1/16 to 3/8

21/64

8.5

AF-40

.02

.563

.25

1.03

1/16 to 3/8

11/32

~

AF-41

.02

.563

.25

1.03

1/16 to 3/8

~

9

AF-42

.02

.563

.25

1.03

1/16 to 3/8

23/64

~

AF-43

.02

.563

.25

1.03

1/16 to 3/8

3/8

9.5

AF-44

.02

.563

.25

1.03
Universal Engineering Acura-Flex Collet drawing
Universal Engineering Acura-Flex Collet Picture 4
[Back]

1/2" Capacity Acura-Flex Collets 75 pixel space Price and Availability
Universal Engineering (TSD) part numbers, dimensions and specifications

Chuck Tool Size Range

Max. Tool Size (in.)

Max. Tool Size (mm)

Universal Part No.

Clamp Range

Gage Dia. D

Z

L

7/64 to 1/2

1/8

~

AF-55

.02

.720

.25

1.16

7/64 to 1/2

9/64

3.5

AF-56

.02

.720

.25

1.16

7/64 to 1/2

5/32

4

AF-57

.02

.720

.25

1.16

7/64 to 1/2

11/64

4.5

AF-58

.02

.720

.25

1.16

7/64 to 1/2

3/16

~

AF-59

.02

.720

.25

1.16

7/64 to 1/2

~

5

AF-60

.02

.720

.25

1.16

7/64 to 1/2

13/64

~

AF-61

.02

.720

.25

1.16

7/64 to 1/2

7/32

5.5

AF-62

.02

.720

.25

1.16

7/64 to 1/2

15/64

6

AF-63

.02

.720

.25

1.16

7/64 to 1/2

1/4

6.5

AF-64

.02

.720

.25

1.16

7/64 to 1/2

17/64

~

AF-65

.02

.720

.25

1.16

7/64 to 1/2

~

7

AF-66

.02

.720

.25

1.16

7/64 to 1/2

9/32

~

AF-67

.02

.720

.25

1.16

7/64 to 1/2

19/64

7.5

AF-68

.02

.720

.25

1.16

7/64 to 1/2

5/16

8

AF-69

.02

.720

.25

1.16

7/64 to 1/2

21/64

8.5

AF-70

.02

.720

.25

1.16

7/64 to 1/2

11/32

~

AF-71

.02

.720

.25

1.16

7/64 to 1/2

~

9

AF-72

.02

.720

.25

1.16

7/64 to 1/2

23/64

~

AF-73

.02

.720

.25

1.16

7/64 to 1/2

3/8

9.5

AF-74

.02

.720

.25

1.16

7/64 to 1/2

25/64

10

AF-75

.02

.720

.25

1.16

7/64 to 1/2

13/32

10.5

AF-76

.02

.720

.25

1.16

7/64 to 1/2

27/64

~

AF-77

.02

.720

.25

1.16

7/64 to 1/2

7/16

11

AF-78

.02

.720

.25

1.16

7/64 to 1/2

29/64

11.5

AF-79

.02

.720

.25

1.16

7/64 to 1/2

15/32

12

AF-80

.02

.720

.25

1.16

7/64 to 1/2

31/64

12.5

AF-81

.02

.720

.25

1.16

7/64 to 1/2

1/2

~

AF-82

.02

.720

.25

1.16
Universal Engineering Acura-Flex Collet drawing
Universal Engineering Acura-Flex Collet picture 5
[Back]

3/4" Capacity Acura-Flex Collets 75 pixel space Price and Availability
Universal Engineering (TSD) part numbers, dimensions and specifications

Chuck Tool Size Range

Max. Tool Size (in.)

Max. Tool Size (mm)

Universal Part No.

Clamp Range

Gage Dia. D

Z

L

7/64 to 3/4

1/8

~

AF-95

.02

1.131

.62

2.02

7/64 to 3/4

9/64

3.5

AF-96

.02

1.131

.62

2.02

7/64 to 3/4

5/32

4

AF-97

.02

1.131

.62

2.02

7/64 to 3/4

11/64

4.5

AF-98

.02

1.131

.62

2.02

7/64 to 3/4

3/16

~

AF-99

.02

1.131

.62

2.02

7/64 to 3/4

~

5

AF-100

.02

1.131

.62

2.02

7/64 to 3/4

13/64

~

AF-101

.02

1.131

.62

2.02

7/64 to 3/4

7/32

5.5

AF-102

.02

1.131

.62

2.02

7/64 to 3/4

15/64

6

AF-103

.02

1.131

.62

2.02

7/64 to 3/4

1/4

6.5

AF-104

.02

1.131

.62

2.02

7/64 to 3/4

17/64

~

AF-105

.02

1.131

.62

2.02

7/64 to 3/4

~

7

AF-106

.02

1.131

.62

2.02

7/64 to 3/4

9/32

~

AF-107

.02

1.131

.62

2.02

7/64 to 3/4

19/64

7.5

AF-108

.02

1.131

.62

2.02

7/64 to 3/4

5/16

8

AF-109

.02

1.131

.62

2.02

7/64 to 3/4

21/64

8.5

AF-110

.02

1.131

.62

2.02

7/64 to 3/4

11/32

~

AF-111

.02

1.131

.62

2.02

7/64 to 3/4

~

9

AF-112

.02

1.131

.62

2.02

7/64 to 3/4

23/64

~

AF-113

.02

1.131

.62

2.02

7/64 to 3/4

3/8

9.5

AF-114

.02

1.131

.62

2.02

7/64 to 3/4

25/64

10

AF-115

.02

1.131

.62

2.02

7/64 to 3/4

13/32

10.5

AF-116

.02

1.131

.62

2.02

7/64 to 3/4

27/64

~

AF-117

.02

1.131

.62

2.02

7/64 to 3/4

7/16

11

AF-118

.02

1.131

.62

2.02

7/64 to 3/4

29/64

11.5

AF-119

.02

1.131

.62

2.02

7/64 to 3/4

15/32

12

AF-120

.02

1.131

.62

2.02

7/64 to 3/4

31/64

12.5

AF-121

.02

1.131

.62

2.02

7/64 to 3/4

1/2

~

AF-122

.02

1.131

.62

2.02

7/64 to 3/4

33/64

13

AF-123

.02

1.131

.62

2.02

7/64 to 3/4

17/32

13.5

AF-124

.02

1.131

.62

2.02

7/64 to 3/4

35/64

14

AF-125

.02

1.131

.62

2.02

7/64 to 3/4

9/16

14.5

AF-126

.02

1.131

.62

2.02

7/64 to 3/4

37/64

~

AF-127

.02

1.131

.62

2.02

7/64 to 3/4

19/32

15

AF-128

.02

1.131

.62

2.02

7/64 to 3/4

39/64

15.5

AF-129

.02

1.131

.62

2.02

7/64 to 3/4

5/8

16

AF-130

.02

1.131

.62

2.02

7/64 to 3/4

41/64

16.5

AF-131

.02

1.131

.62

2.02

7/64 to 3/4

21/32

~

AF-132

.02

1.131

.62

2.02

7/64 to 3/4

43/64

17

AF-133

.02

1.131

.62

2.02

7/64 to 3/4

11/16

17.5

AF-134

.02

1.131

.62

2.02

7/64 to 3/4

45/64

18

AF-135

.02

1.131

.62

2.02

7/64 to 3/4

23/32

18.5

AF-136

.02

1.131

.62

2.02

7/64 to 3/4

47/64

~

AF-137

.02

1.131

.62

2.02

7/64 to 3/4

3/4

19

AF-138

.02

1.131

.62

2.02

7/64 to 3/4

49/64

19.5

AF-139

.02

1.131

.62

2.02

7/64 to 3/4

25/32

20

AF-140

.02

1.131

.62

2.02
Universal Engineering Acura-Flex Collet drawing
Universal Engineering Acura-Flex Collet picture 6
[Back]

1" Capacity Acura-Flex Collets 75 pixel space Price and Availability
Universal Engineering (TSD) part numbers, dimensions and specifications

Chuck Tool Size Range

Max. Tool Size (in.)

Max. Tool Size (mm)

Universal Part No.

Clamp Range

Gage Dia.
D

Z

L

7/32 to 1"

15/64

6

AF-162

0.02

1.446

.75

2.50

7/32 to 1"

1/4

6.5

AF-163

0.02

1.446

.75

2.50

7/32 to 1"

17/64

~

AF-164

0.02

1.446

.75

2.50

7/32 to 1"

~

7

AF-165

0.02

1.446

.75

2.50

7/32 to 1"

9/32

~

AF-166

0.02

1.446

.75

2.50

7/32 to 1"

19/64

7.5

AF-167

0.02

1.446

.75

2.50

7/32 to 1"

5/16

8

AF-168

0.02

1.446

.75

2.50

7/32 to 1"

21/64

8.5

AF-169

0.02

1.446

.75

2.50

7/32 to 1"

11/32

~

AF-170

0.02

1.446

.75

2.50

7/32 to 1"

~

9

AF-171

0.02

1.446

.75

2.50

7/32 to 1"

23/64

~

AF-172

0.02

1.446

.75

2.50

7/32 to 1"

3/8

9.5

AF-173

0.02

1.446

.75

2.50

7/32 to 1"

25/64

10

AF-174

0.02

1.446

.75

2.50

7/32 to 1"

13/32

10.5

AF-175

0.02

1.446

.75

2.50

7/32 to 1"

27/64

~

AF-176

0.02

1.446

.75

2.50

7/32 to 1"

7/16

11

AF-177

0.02

1.446

.75

2.50

7/32 to 1"

29/64

11.5

AF-178

0.02

1.446

.75

2.50

7/32 to 1"

15/32

12

AF-179

0.02

1.446

.75

2.50

7/32 to 1"

31/64

12.5

AF-180

0.02

1.446

.75

2.50

7/32 to 1"

1/2

~

AF-181

0.02

1.446

.75

2.50

7/32 to 1"

33/64

13

AF-182

0.02

1.446

.75

2.50

7/32 to 1"

17/32

13.5

AF-183

0.02

1.446

.75

2.50

7/32 to 1"

35/64

14

AF-184

0.02

1.446

.75

2.50

7/32 to 1"

9/16

14.5

AF-185

0.02

1.446

.75

2.50

7/32 to 1"

37/64

~

AF-186

0.02

1.446

.75

2.50

7/32 to 1"

19/32

15

AF-187

0.02

1.446

.75

2.50

7/32 to 1"

39/64

15.5

AF-188

0.02

1.446

.75

2.50

7/32 to 1"

5/8

16

AF-189

0.02

1.446

.75

2.50

7/32 to 1"

41/64

16.5

AF-190

0.02

1.446

.75

2.50

7/32 to 1"

21/32

~

AF-191

0.02

1.446

.75

2.50

7/32 to 1"

43/64

17

AF-192

0.02

1.446

.75

2.50

7/32 to 1"

11/16

17.5

AF-193

0.02

1.446

.75

2.50

7/32 to 1"

45/64

18

AF-194

0.02

1.446

.75

2.50

7/32 to 1"

23/32

18.5

AF-195

0.02

1.446

.75

2.50

7/32 to 1"

47/64

~

AF-196

0.02

1.446

.75

2.50

7/32 to 1"

3/4

19

AF-197

0.02

1.446

.75

2.50

7/32 to 1"

49/64

19.5

AF-198

0.02

1.446

.75

2.50

7/32 to 1"

25/32

20

AF-199

0.02

1.446

.75

2.50

7/32 to 1"

51/64

20.5

AF-200

0.02

1.446

.75

2.50

7/32 to 1"

13/16

~

AF-201

0.02

1.446

.75

2.50

7/32 to 1"

53/64

21

AF-202

0.02

1.446

.75

2.50

7/32 to 1"

27/32

21.5

AF-203

0.02

1.446

.75

2.50

7/32 to 1"

55/64

22

AF-204

0.02

1.446

.75

2.50

7/32 to 1"

7/8

~

AF-205

0.02

1.446

.75

2.50

7/32 to 1"

57/64

22.5

AF-206

0.02

1.446

.75

2.50

7/32 to 1"

29/32

23

AF-207

0.02

1.446

.75

2.50

7/32 to 1"

59/64

23.5

AF-208

0.02

1.446

.75

2.50

7/32 to 1"

15/16

24

AF-209

0.02

1.446

.75

2.50

7/32 to 1"

61/64

~

AF-210

0.02

1.446

.75

2.50

7/32 to 1"

31/32

24.5

AF-211

0.02

1.446

.75

2.50

7/32 to 1"

63/64

25

AF-212

0.02

1.446

.75

2.50

7/32 to 1"

1

25.5

AF-213

0.02

1.446

.75

2.50
Universal Engineering Acura-Flex Collet drawing
Universal Engineering Acura-Flex Collet picture 7
[Back]

1-3/8" Capacity Acura-Flex Collets 75 pixel space Price and Availability
Universal Engineering (TSD) part numbers, dimensions and specifications

Chuck Tool Size Range

Max. Tool Size (in.)

Max. Tool Size (mm)

Universal Part No.

Clamp Range

Gage Dia.
D

Z

L

11/32 to 1-3/8

3/8

~

AF-241

.04

1.909

.91

3.10

11/32 to 1-3/8

~

10

AF-242

.04

1.909

.91

3.10

11/32 to 1-3/8

13/32

~

AF-243

.04

1.909

.91

3.10

11/32 to 1-3/8

7/16

11

AF-244

.04

1.909

.91

3.10

11/32 to 1-3/8

15/32

12

AF-245

.04

1.909

.91

3.10

11/32 to 1-3/8

1/2

~

AF-246

.04

1.909

.91

3.10

11/32 to 1-3/8

~

13

AF-247

.04

1.909

.91

3.10

11/32 to 1-3/8

17/32

~

AF-248

.04

1.909

.91

3.10

11/32 to 1-3/8

~

14

AF-249

.04

1.909

.91

3.10

11/32 to 1-3/8

9/16

~

AF-250

.04

1.909

.91

3.10

11/32 to 1-3/8

19/32

15

AF-251

.04

1.909

.91

3.10

11/32 to 1-3/8

5/8

16

AF-252

.04

1.909

.91

3.10

11/32 to 1-3/8

21/32

~

AF-253

.04

1.909

.91

3.10

11/32 to 1-3/8

~

17

AF-254

.04

1.909

.91

3.10

11/32 to 1-3/8

11/16

~

AF-255

.04

1.909

.91

3.10

11/32 to 1-3/8

~

18

AF-256

.04

1.909

.91

3.10

11/32 to 1-3/8

23/32

~

AF-257

.04

1.909

.91

3.10

11/32 to 1-3/8

3/4

19

AF-258

.04

1.909

.91

3.10

11/32 to 1-3/8

25/32

20

AF-259

.04

1.909

.91

3.10

11/32 to 1-3/8

13/16

~

AF-261

.04

1.909

.91

3.10

11/32 to 1-3/8

~

21

AF-262

.04

1.909

.91

3.10

11/32 to 1-3/8

27/32

~

AF-263

.04

1.909

.91

3.10

11/32 to 1-3/8

~

22

AF-260

.04

1.909

.91

3.10

11/32 to 1-3/8

7/8

~

AF-264

.04

1.909

.91

3.10

11/32 to 1-3/8

29/32

23

AF-265

.04

1.909

.91

3.10

11/32 to 1-3/8

15/16

24

AF-266

.04

1.909

.91

3.10

11/32 to 1-3/8

31/32

~

AF-267

.04

1.909

.91

3.10

11/32 to 1-3/8

~

25

AF-268

.04

1.909

.91

3.10

11/32 to 1-3/8

1

~

AF-269

.04

1.909

.91

3.10

11/32 to 1-3/8

~

26

AF-270

.04

1.909

.91

3.10

11/32 to 1-3/8

1-1/32

~

AF-271

.04

1.909

.91

3.10

11/32 to 1-3/8

1-1/16

27

AF-272

.04

1.909

.91

3.10

11/32 to 1-3/8

1-3/32

28

AF-273

.04

1.909

.91

3.10

11/32 to 1-3/8

1-1/8

~

AF-274

.04

1.909

.91

3.10

11/32 to 1-3/8

~

29

AF-275

.04

1.909

.91

3.10

11/32 to 1-3/8

1-5/32

~

AF-276

.04

1.909

.91

3.10

11/32 to 1-3/8

~

30

AF-277

.04

1.909

.91

3.10

11/32 to 1-3/8

1-3/16

~

AF-278

.04

1.909

.91

3.10

11/32 to 1-3/8

1-7/32

31

AF-279

.04

1.909

.91

3.10

11/32 to 1-3/8

1-1/4

32

AF-280

.04

1.909

.91

3.10

11/32 to 1-3/8

1-9/32

~

AF-281

.04

1.909

.91

3.10

11/32 to 1-3/8

~

33

AF-282

.04

1.909

.91

3.10

11/32 to 1-3/8

1-5/16

~

AF-283

.04

1.909

.91

3.10

11/32 to 1-3/8

~

34

AF-284

.04

1.909

.91

3.10

11/32 to 1-3/8

1-11/32

~

AF-285

.04

1.909

.91

3.10

11/32 to 1-3/8

1-3/8

35

AF-286

.04

1.909

.91

3.10
Universal Engineering Acura-Flex Collet drawing
Universal Engineering Acura-Flex Collet picture 8
[Back]

1-5/8" Capacity Acura-Flex Collets 75 pixel space Price and Availability
Universal Engineering (TSD) part numbers, dimensions and specifications

Chuck Tool Size Range

Max. Tool Size (in.)

Max. Tool Size (mm)

Universal Part No.

Clamp Range

Gage Dia.
D

Z

L

19/32 to 1-5/8

5/8

16

AF-331

.04

2.163

.91

3.13

19/32 to 1-5/8

21/32

~

AF-332

.04

2.163

.91

3.13

19/32 to 1-5/8

~

17

AF-333

.04

2.163

.91

3.13

19/32 to 1-5/8

11/16

~

AF-334

.04

2.163

.91

3.13

19/32 to 1-5/8

~

18

AF-335

.04

2.163

.91

3.13

19/32 to 1-5/8

23/32

~

AF-336

.04

2.163

.91

3.13

19/32 to 1-5/8

3/4

19

AF-337

.04

2.163

.91

3.13

19/32 to 1-5/8

25/32

20

AF-338

.04

2.163

.91

3.13

19/32 to 1-5/8

13/16

~

AF-340

.04

2.163

.91

3.13

19/32 to 1-5/8

~

21

AF-341

.04

2.163

.91

3.13

19/32 to 1-5/8

27/32

~

AF-342

.04

2.163

.91

3.13

19/32 to 1-5/8

~

22

AF-339

.04

2.163

.91

3.13

19/32 to 1-5/8

7/8

~

AF-343

.04

2.163

.91

3.13

19/32 to 1-5/8

29/32

23

AF-344

.04

2.163

.91

3.13

19/32 to 1-5/8

15/16

24

AF-345

.04

2.163

.91

3.13

19/32 to 1-5/8

31/32

~

AF-346

.04

2.163

.91

3.13

19/32 to 1-5/8

~

25

AF-347

.04

2.163

.91

3.13

19/32 to 1-5/8

1

~

AF-348

.04

2.163

.91

3.13

19/32 to 1-5/8

~

26

AF-349

.04

2.163

.91

3.13

19/32 to 1-5/8

1-1/32

~

AF-350

.04

2.163

.91

3.13

19/32 to 1-5/8

1-1/16

27

AF-351

.04

2.163

.91

3.13

19/32 to 1-5/8

1-3/32

28

AF-352

.04

2.163

.91

3.13

19/32 to 1-5/8

1-1/8

~

AF-353

.04

2.163

.91

3.13

19/32 to 1-5/8

~

29

AF-354

.04

2.163

.91

3.13

19/32 to 1-5/8

1-5/32

~

AF-355

.04

2.163

.91

3.13

19/32 to 1-5/8

~

30

AF-356

.04

2.163

.91

3.13

19/32 to 1-5/8

1-3/16

~

AF-357

.04

2.163

.91

3.13

19/32 to 1-5/8

1-7/32

31

AF-358

.04

2.163

.91

3.13

19/32 to 1-5/8

1-1/4

32

AF-359

.04

2.163

.91

3.13

19/32 to 1-5/8

1-9/32

~

AF-360

.04

2.163

.91

3.13

19/32 to 1-5/8

~

33

AF-361

.04

2.163

.91

3.13

19/32 to 1-5/8

1-5/16

~

AF-362

.04

2.163

.91

3.13

19/32 to 1-5/8

~

34

AF-363

.04

2.163

.91

3.13

19/32 to 1-5/8

1-11/32

~

AF-364

.04

2.163

.91

3.13

19/32 to 1-5/8

1-3/8

35

AF-365

.04

2.163

.91

3.13

19/32 to 1-5/8

1-13/32

~

AF-366

.04

2.163

.91

3.13

19/32 to 1-5/8

~

36

AF-367

.04

2.163

.91

3.13

19/32 to 1-5/8

1-7/16

~

AF-368

.04

2.163

.91

3.13

19/32 to 1-5/8

~

37

AF-369

.04

2.163

.91

3.13

19/32 to 1-5/8

1-15/32

~

AF-370

.04

2.163

.91

3.13

19/32 to 1-5/8

1-1/2

38

AF-371

.04

2.163

.91

3.13

19/32 to 1-5/8

1-17/32

39

AF-372

.04

2.163

.91

3.13

19/32 to 1-5/8

1-9/16

~

AF-373

.04

2.163

.91

3.13

19/32 to 1-5/8

~

40

AF-374

.04

2.163

.91

3.13

19/32 to 1-5/8

1-19/32

~

AF-375

.04

2.163

.91

3.13

19/32 to 1-5/8

~

41

AF-376

.04

2.163

.91

3.13

19/32 to 1-5/8

1-5/8

~

AF-377

.04

2.163

.91

3.13

 Universal Engineering Acura-Flex Collet drawing
Universal Engineering Acura-Flex Collet picture 9
[Back]

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.

HomeVertical Line Inventory IndexVertical Line SpecificationsVertical Line Contact UsVertical Line About UsVertical Line Policies
Copyright © 2001-2008 Tools-n-Gizmos
