Kwik-Switch End Mill Adapter

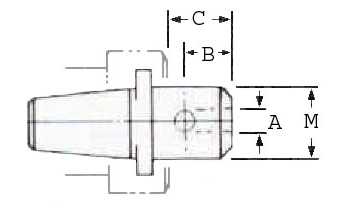

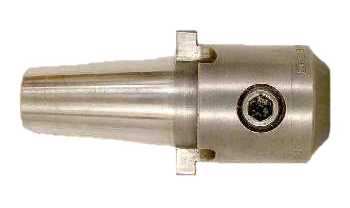

Universal Engineering (TSD) part numbers, dimensions and specifications
Kwik-Switch Size |
A |
Universal
Part No. |
B |
C |
M |
|
Price and
Availability
|
100 |
.1875 |
80141 |
0.56 |
1.03 |
0.68 |
100 |
.3750 |
80142 |
0.75 |
1.03 |
1.00 |
100 |
.5000 |
80143 |
0.88 |
1.28 |
1.25 |
|
~
|
200 |
.1875 |
801431 |
0.56 |
1.03 |
0.68 |
200 |
.2500 |
80721 |
0.75 |
1.41 |
1.00 |
200 |
.3125 |
802481 |
0.75 |
1.41 |
1.00 |
200 |
.3750 |
80242 |
0.75 |
1.41 |
1.00 |
200 |
.4375 |
802482 |
? |
? |
? |
200 |
.5000 |
80243 |
0.88 |
1.41 |
1.31 |
200 |
.6250 |
80244 |
0.94 |
1.41 |
1.62 |
200 |
.7500 |
80245 |
1.00 |
1.66 |
1.72 |
200 |
.8750 (1) |
80246 |
1.00 |
1.91 |
1.94 |
200 |
1.0000 (1) |
80247 |
1.12 |
2.03 |
1.94 |
|
Click
for
Price
and
Availability
|
300 |
.3750 |
80342 |
0.75 |
1.28 |
1.00 |
300 |
.5000 |
80343 |
0.88 |
1.28 |
1.38 |
300 |
.6250 |
80344 |
0.94 |
1.28 |
1.62 |
300 |
.7500 |
80345 |
1.00 |
1.53 |
1.62 |
300 |
.8750 |
* 80346 |
1.00 |
1.53 |
1.94 |
300 |
1.0000 (2) |
80347 |
1.12 |
1.72 |
1.94 |
300 |
1.0000 (3) |
806272 |
1.12 |
1.72 |
1.94 |
300 |
1.2500 (1) |
80851 |
1.12 |
3.19 |
2.50 |
|
Click
for
Price
and
Availability
|
400 |
.3750 |
80442 |
0.75 |
1.03 |
1.00 |
400 |
.5000 |
80443 |
0.88 |
1.22 |
1.38 |
400 |
.6250 |
80444 |
0.94 |
1.22 |
1.62 |
400 |
.7500 |
80445 |
1.00 |
1.41 |
1.75 |
400 |
.8750 |
* 80446 |
1.00 |
1.41 |
2.00 |
400 |
1.0000 |
* 80447 |
1.12 |
1.66 |
2.25 |
400 |
1.2500 |
* 80448 |
1.12 |
1.66 |
2.62 |
400 |
1.5000 (1) |
* 80451 |
1.12 |
3.03 |
2.88 |
400 |
2.0000 (1) |
* 807032 |
1.12 |
3.66 |
4.00
|
|
Click
for
Price
and
Availability
|
* indicates dual set screws
(1) For light duty use and single end end mills only.
(2) For light duty use only.
(3) For single end end mills only.
Related Links:
Kwik-Switch Shank specs
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
