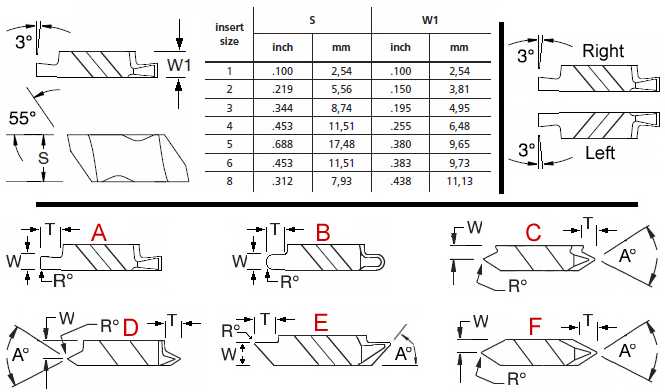

Kennametal Top-Notch Inserts

for Grooving and Threading

Part No.

Form

Size

Hand

W

T

R°

A°

TPI

Profile

AD05630230036

F

4

L

0.05" @ T*

0.2" *

1/32" *

≈ 20° *

~

NG3156L

A

3

L

0.156"
3,96mm

0.150"
3,81mm

0.0075"
0,19mm

~

~

NG3156LK

A

3

L

0.156"
3,96mm

0.150"
3,81mm

0.0075"
0,19mm

~

~

NG4125R **
(410546R03)

A

4

R

0.125" *

0.175" *

≈ 1/64" *

~

~

NG4130R **
(2496-5562)

A

4

R

0.13" *

0.2" *

1/64" *

~

~

NG4160R **
(2496-0962)

A

4

R

0.160" *

1/4" *

≈ 0.02" *

~

~

NG4250R

A

4

R

1/4"
6,35mm

1/4"
6,35mm

0.0225"
0,57mm

~

~

NG5207L **
(2496-3082)

A

5

L

0.207" *

0.45" *

< 1/64" *

~

~

NG5250R

A

5

R

1/4"
6,35mm

3/8"
9,52mm

0.0225"
0,57mm

~

~

NG5345L **
(2496-2012)

A

5

L

0.345" *

0.35" *

≈ 0.02" *

~

~

NG5375L

A

5

L

3/8""
9,53mm

3/8"
9,52mm

0.0325"
9,52mm

~

~

NG6312L

A

6

L

0.312"
7,93mm

1/4"
6,35mm

0.0325"
0,83mm

~

~

NGC4180L **
(2496-1232)

A

4

L

0.18" *

0.1" *

1/32" *

~

~

NGC4185L **
(321471R00)

A

4

L

0.185" *

0.1" *

< 1/64" *

~

~

NGC4188L **
(2539-5382)

A

4

L

0.188" *

0.05" *

< 1/64" *

~

~

NGD4250LK **
(339504R01S02)

A

4

L

1/4" *

0.6" *

≈ 0.02" *

~

~

NGP3088R

A

3

R

0.088"

0.094"

0.0075"

~

~

NP2xxxL **
(280079R02)

E

2

L

0.14" *

0.125" *

≈ 1/64" *

45° *

~

NP2xxxR **
(336935R01)

E

2

R

0.1" *

0.085" *

≈ 1/64" *

45° *

~

NRD5125L **
(229354R00)

B

5

L

0.125" *

0.6" *

1/16" *

~

~

NT3L

F

3

L

0.098"
2,49mm

0.145" *

0.007"
0,17mm

60°

ext. 6 to 20
int. 5 to 12

NTF3L

D

3

L

0.141"
3,58mm

0.115" *

0.003"
0,08mm

60°

ext. 10 to 44
int. 9 to 24

NTK3L

D

3

L

0.141"
3,58mm

0.2" *

0.003"
0,08mm

60°

ext. 10 to 44
int. 9 to 24

NTP3L

F

3

L

0.098"
2,49mm

0.14" *

0.0065"
0,17mm

60°

ext. 6 to 20
int. 5 to 12

Nx4215L **
(232844R00)

B

4

L

0.215" *

1/4" *

≈ 3/64"
& 7/64" *

~

~

Nx4xxxR **
(336932R02)

C

4

R

0.185" *

0.070" *

≈ 3/64" *

45° *

~

Nx4xxxR **
(337006R00)

C

4

R

0.215" **

0.085" *

≈ 1/64" *

60° *

~

Nx4xxxR **
(780-9564)

C

4

R

0.2" *

0.070" *

≈ 1/64" *

40° *

?
