Rotary Cleaning Station:
              After initial cleaning I used this station to finish cleaning and inspect most tools before pictures and posting.
14pt Dot Mount tool (e.g. Cat40 EMH) in 3 Jaw, wrap soft scotch brite pad around shank and spin tool to polish shank.
14pt Dot Mount Cat40 Master with straight shank in 3 jaw, mount EMH in master and use bottle brush to clean bore.
14pt Dot Pin gauge bore
14pt Dot Install 6" rod and rough check tool runout
14pt Dot I had rack of Masters I could mount in the 3 jaw for almost every shank.
50pt Space Kwik-Switch 100, 200, 300 and 400
50pt Space Cat 30, 40, 50. NMTB 40, 50. Erickson QC 30 & 40. etc., etc., etc.
14pt Dot I had rack of Collets for almost every type and size range of Collet Chuck.
50pt Space Acura-Flex 1/4", 3/8", 1/2", 3/4", 1", 1-3/8" & 1-5/8". Acura-Grip, Acura-Tap.
50pt Space TG, ER, DT, DA, 5C, Erickson Tap, Rubber-Flex, TT, FL, etc., etc., etc.

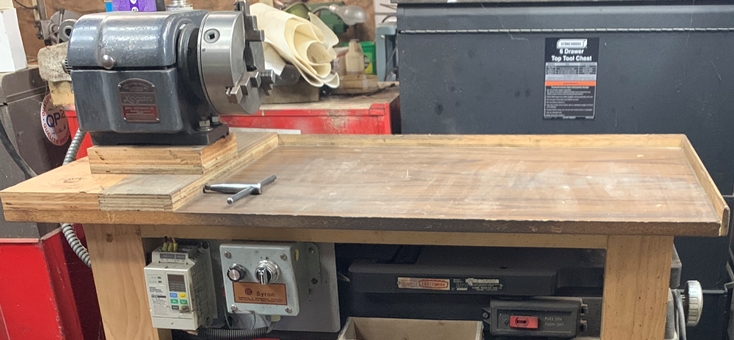

              I have it sitting on top of my big Joiner so the 2x4 legs are only about 12" long.
14pt Dot The VFD is currently powered by 3 phase 240 but can easily be reconfigured to 220 single phase.
14pt Dot Components and my cost

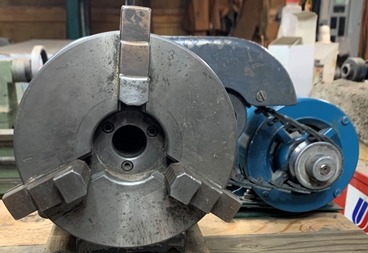

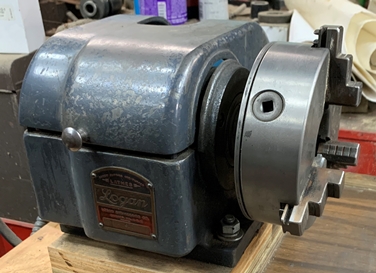

50pt Space Logan 9" Lathe Head & Spindle $96.72
50pt Space Lathe Head Spindle Cover $9.99
50pt Space Motor, 3 phase, 230volt, 1/4hp $49.38

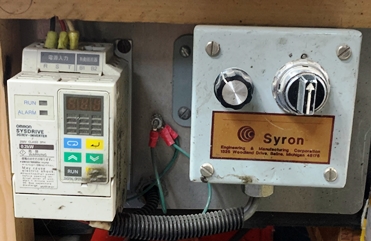

50pt Space VFD, 1/2hp, 240vac 3G3EV-A2002 $22.21
50pt Space Lathe Chuck, 1-1/2-8, 6" 3 jaw $99.95
50pt Space Speed Control Potentiometer and Fwd/Rev Switch $17.93
50pt Space My Cost $296.18


Picture 1

Picture 2

Picture 3

Picture 4

Picture 5




If you have any questions, please contact me.
Steve (aka Griz)
